Delock HDMI KVM Switch 2x HDMI met USB en audio


€ 99,00 incl. btw
11421
+

Productinformatie

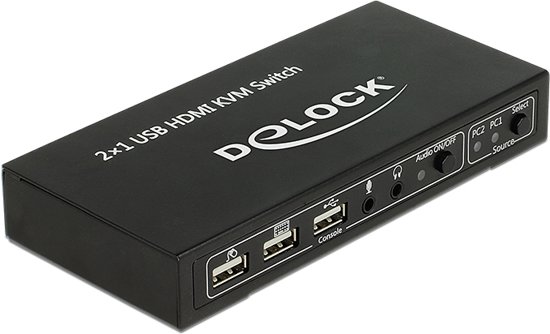

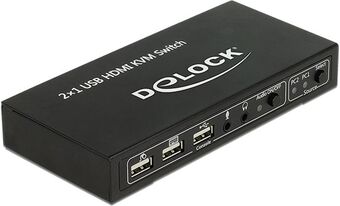

This KVM switch by Delock is a convenient solution for connecting two computers with HDMI output to one HDMI monitor. By using the button or a hotkey you can switch between both computers. Furthermore, three USB 2.0 Type-A ports can be used to connect a mouse, keyboard, hard drive or USB memory. The built-in USB headset feature allows you to use a headset and microphone with both computers.

Specification

• Connectors:
  Input:
    2 x HDMI-A 19 pin female
    2 x USB 2.0 Type-B female
    1 x 5 V DC jack
  Output:
    1 x HDMI-A 19 pin female
    3 x USB 2.0 Type-A female
    2 x 3.5 mm stereo jack (1 x speaker, 1 x microphone)
• 2 switch buttons with LED indicator for source (PC1, PC2) and audio
• Switching via button or hotkey
• High Speed HDMI specification
• Resolution up to 2560 x 1440 @ 60 Hz / 3840 x 2160 @ 30 Hz (depending on the
  system and the connected hardware)
• Video bandwidth up to 250 MHz
• USB 2.0 up to 480 Mbps
• Robust metal housing
• Colour: black
• Dimensions (LxWxH): ca. 15.4 x 6.9 x 2.4 cm
• OS independent, no driver installation necessary



Power supply specification

• Wall power supply
• Input: AC 100 ~ 240 V / 50 ~ 60 Hz / 0.5 A
• Output: 5 V / 2 A
• Ground outside, plus inside
• Dimensions:
  inside: ø ca. 1.35 mm
  outside: ø ca. 3.5 mm
  length: ca. 9 mm



System requirements

• PC with HDMI female + USB Type-A female
• Monitor or TV with HDMI connector

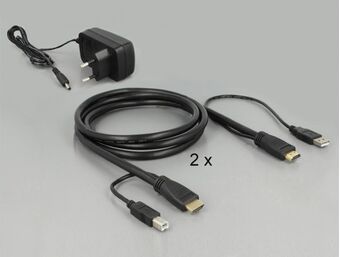

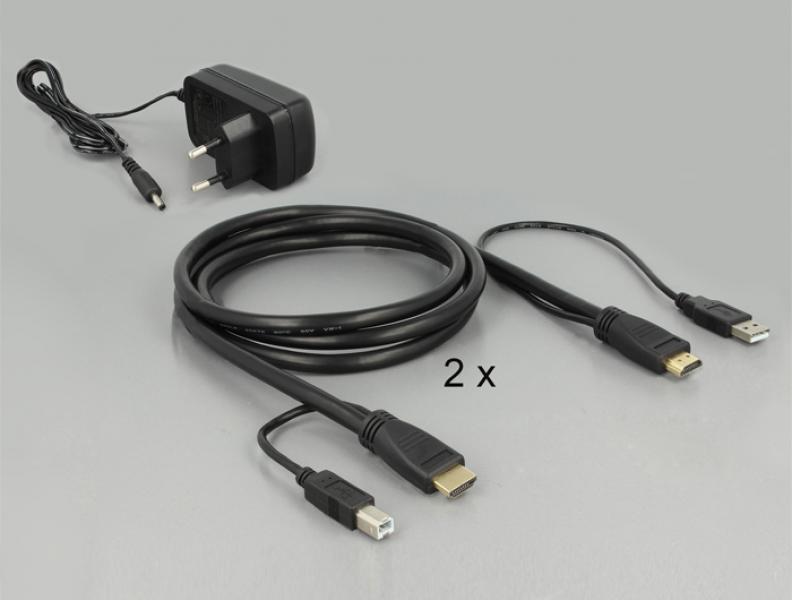

Package content

• HDMI KVM Switch 2 x with USB 2.0 and Audio
• 2 x cable HDMI + USB-A male to HDMI + USB-B male, length ca. 1.8 m
• External power supply
• User manual



Package

• White Box



Specificaties

Algemeen

EAN:
4043619114214
Merk:
Delock
Model Nummer:
11421

Aansluitingen

Audio aansluitingen:
  • Hoofdtelefoon aansluiting (minijack)
  • Microfoon aansluiting (minijack)
Video in:
VGA (D-Sub)
Verbinding (USB):
3 (3x USB2.0)
Video uit:
3x HDMI (2x in - 1x uit)

Uiterlijk

Kleur Product:
Zwart
